MATCHAU
CCS approval
| Quantity: | |
|---|---|
1.FEATURES:
IMO MSC.1/CirC.1327 identifies the requirements to use Fall Preventer Devices (FPDs) as considering an interim risk mitigation measure. FPDs connect with existing on-load release hooks for enhancing safety features.
Our FPDs are designed to meet China Classification Society regulation and approval, and fully compliant with IMO MSC.1/CirC.1327 &1392&1466.
We provide the high quality FPDs,and our FPDs combine the benefits of slings and strops together.It is the new solution and evolution for lifeboat maintenance, inspections and drills.
2.SPECIFICATIONS:

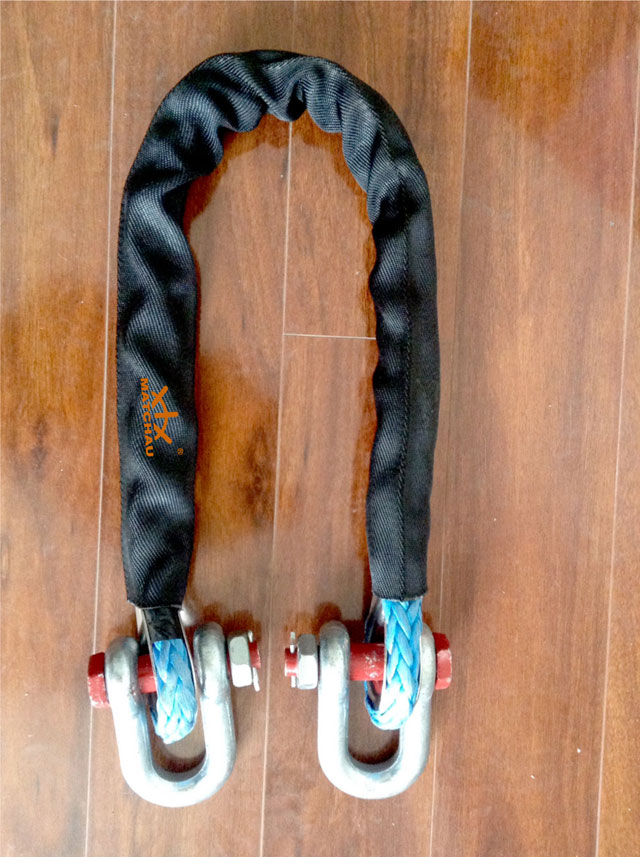

Our product,FPDs(Size of rope: diameter 18mm - 24mm x length 0.9m - 1.5m) is composed of:
(1)12 strand UHMWPE SK75 rope, SWL5tons, MWL 30tons;
(2)SS304 hard material eyes fitted with screw pin shackles both ends;
(3)Shackle size: 7/8" SWL6.5T.
3.WARRANTY:
Warranty period for 12months from date of purchase except damage caused by misuse or vandalism or disasters, and not by ordinary wear and tear.
4.FPD INSTRUCTION / INSTALLATION MANUAL:
1) Launching action:
Wile the lifeboat is in its stowed position,connect FPDs correctly by the following step:
(1) Connect one end of FPDs to the first connecting link or block swivel using 6.5tons shackle;
(2) Connect the other end of FPDs to the hanging-off point on the hook;
Continue to launch lifeboat to water,ensure to remove FPDs before releasing the hook.
2)Recovery action:
Manoeuvre the lifeboat into position below fall and put the main lifting link into the hook.
Before hoisting the boat,the FPDs must be rigged by:
(1) Connect one end of FPDs to the first connecting link or block swivel using 6.5tons shackle;
(2) Connect the other end of FPDs to the hanging-off point on the hook;
Remove the FPDs when lifeboat is in its stowed position.
1.FEATURES:
IMO MSC.1/CirC.1327 identifies the requirements to use Fall Preventer Devices (FPDs) as considering an interim risk mitigation measure. FPDs connect with existing on-load release hooks for enhancing safety features.
Our FPDs are designed to meet China Classification Society regulation and approval, and fully compliant with IMO MSC.1/CirC.1327 &1392&1466.
We provide the high quality FPDs,and our FPDs combine the benefits of slings and strops together.It is the new solution and evolution for lifeboat maintenance, inspections and drills.
2.SPECIFICATIONS:
Our product,FPDs(Size of rope: diameter 18mm - 24mm x length 0.9m - 1.5m) is composed of:
(1)12 strand UHMWPE SK75 rope, SWL5tons, MWL 30tons;
(2)SS304 hard material eyes fitted with screw pin shackles both ends;
(3)Shackle size: 7/8" SWL6.5T.
3.WARRANTY:
Warranty period for 12months from date of purchase except damage caused by misuse or vandalism or disasters, and not by ordinary wear and tear.
4.FPD INSTRUCTION / INSTALLATION MANUAL:
1) Launching action:
Wile the lifeboat is in its stowed position,connect FPDs correctly by the following step:
(1) Connect one end of FPDs to the first connecting link or block swivel using 6.5tons shackle;
(2) Connect the other end of FPDs to the hanging-off point on the hook;
Continue to launch lifeboat to water,ensure to remove FPDs before releasing the hook.
2)Recovery action:
Manoeuvre the lifeboat into position below fall and put the main lifting link into the hook.
Before hoisting the boat,the FPDs must be rigged by:
(1) Connect one end of FPDs to the first connecting link or block swivel using 6.5tons shackle;
(2) Connect the other end of FPDs to the hanging-off point on the hook;
Remove the FPDs when lifeboat is in its stowed position.
