Application of the product: ships engaged on international /domestic voyages.
Wet alarm valve:
Model | DN(mm) | Nominal(Mpa) | Delay time(s) | Dimensions(mm) |
ZSFZ100 | 100 | 1.2 | 15<t<60 | 980×310×455 |
ZSFZ150 | 150 | 1030×340×480 | ||
ZSFZ200 | 200 | 1085×360×540 |

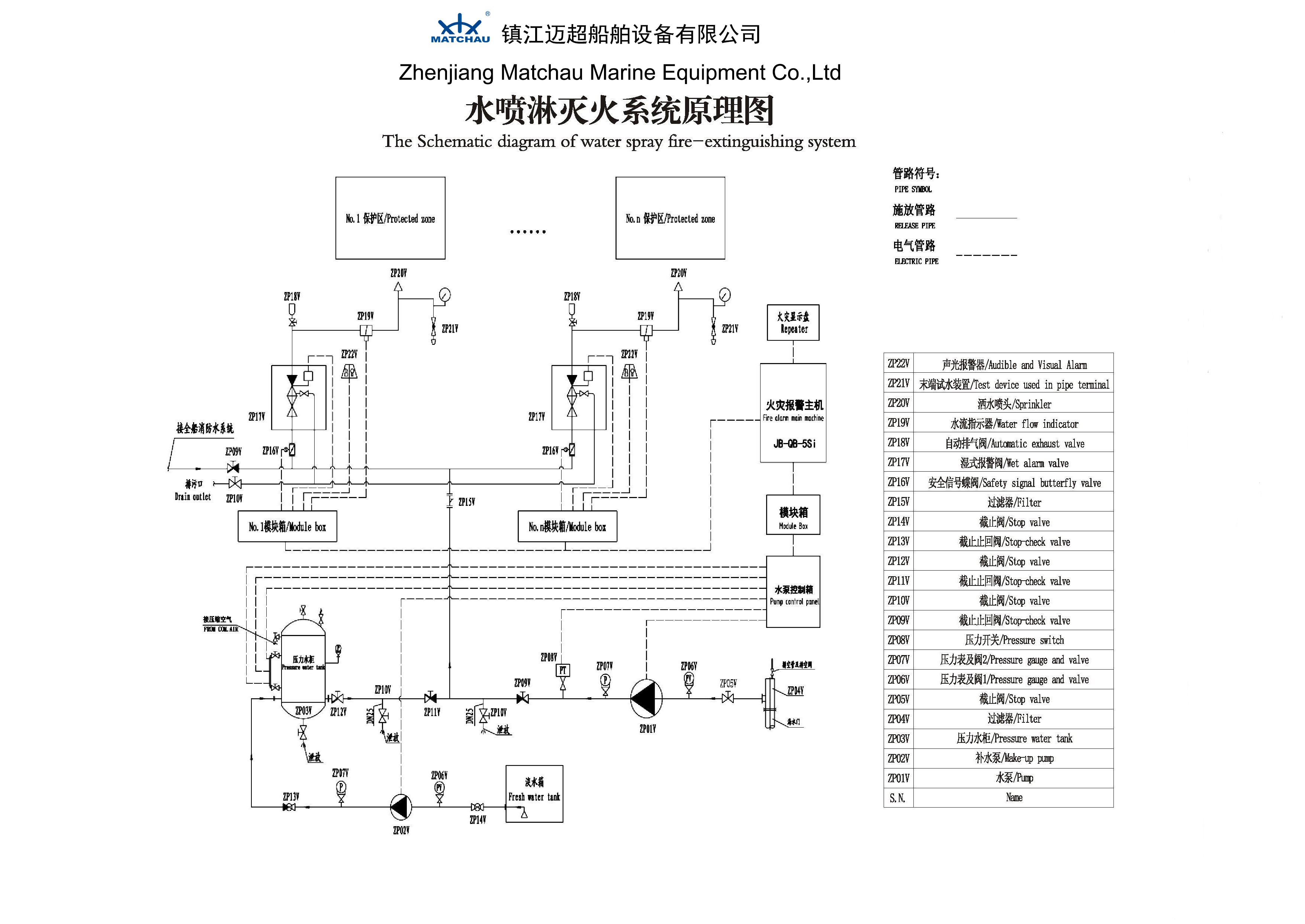

Schematic diagram
