Fixed Water-based Local Application Firefighting System

1.Mid-high Pressure Fixed Water-based Local Application Firefighting System

Application of the product: fixed local application fire-extinguishing in category A machinery spaces and similar risks.

Product description

Model	YNXSWC3-10
Max. operating pressure	10Mpa
Min. operating pressure	3Mpa
Nozzle min.installing height	0.5m
Nozzle max.installing height	7m
Nozzle type	XSWTC1.6/8
Max horizontal spacing	2.8m
Flow factor k	1.6

2.Low Pressure Fixed Water-based Local Application Firefighting System

Application of the product: fixed local application fire-extinguishing in category A machinery spaces and similar risks.

Product description

Model	YNXSWC-L
Nozzle type	YNXSWC5.4/1
Nozzle max.installing height	7m
Nozzle min.installing height	0.5m
Max horizontal spacing	2.2m
Max. operating pressure	1.2Mpa
Min. operating pressure	0.8Mpa
Flow factor k	5.4

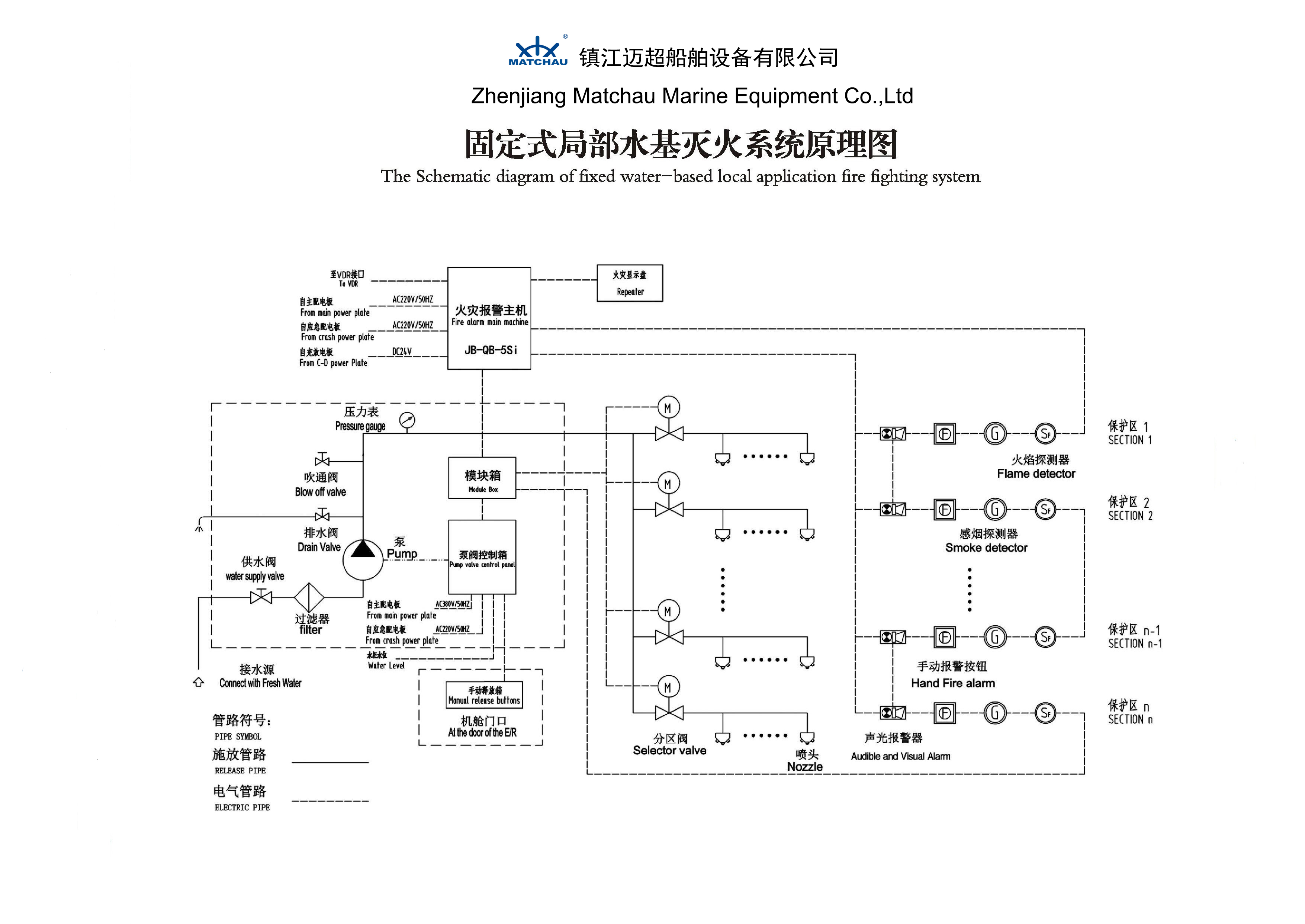

Schematic diagram
