Marine CO2 Fire Extinguisher Plant

Marine CO2 fire extinguisher plant is suitable for Sea going ships, engaged in international/domestic voyages, oil platforms, and such places as plants, mines, docks, and warehouses.

  • YN-68
  • MATCHAU
Quantity:

Suitable for places

Sea going ships, engaged in international/domestic voyages, oil platforms, and such places as plants, mines, docks, and warehouses.



Taxonomy

1. System for machinery spaces

System for machinery spaces mainly consists of cylinder unit, pneumatic selection valve, nozzles, pipeline, etc. The system remotely controlled through remote control station. There is alarm before and during the release of CO2.

2. System for cargo holds

System for cargo holds consists of cylinder unit(sectioned by protection volume), tee valve unit, and nozzle in cargo holds. The system is started by manually turning tee valve, then open head valve, and release CO2 extinguish the fire.



Technical parameter

Model

YN-68(40);YNN-68(40)

Class

Fixed

Nominal pressure

14.7Mpa

Cylinder volume

CO2 cylinder

8L/10L/12L/20L/40L/68L

N2 cylinder

4L

CO2 filling rate

≤0.67KG/L

Environment condition

Temperature

-10℃+50℃

Humidity

93+-3%

Electricity supply

Main supply

AC220V 50HZ/440V 60HZ

Auxiliary supply

DC24V 3A

Power

Standby

≤30W

Working

220W

Operation method

Manual


Pneumatic

Remote control

Manual

Local operation

Release delay

Machanical delay

20-40S

Star up air source

Gas type

N2

Filling pressure

5.9Mpa



Release control cabinet

Main technical parameters

Single cylinder volume: 4L

Number of cylinder: 2

Filling gas: N2

Filling pressure: 5.9Mpa

Delay: 20~40s



Air control valve

Connecting style

Nominal pressure

Nominal diameter

Applicable medium

Thread, Flange

14.7

DN25~DN32

CO2

Flange

14.7

DN40~DN125

CO2



Release valve


Nominal pressure

Nominal diameter

Applicable medium

14.7

DN15~DN65

CO2

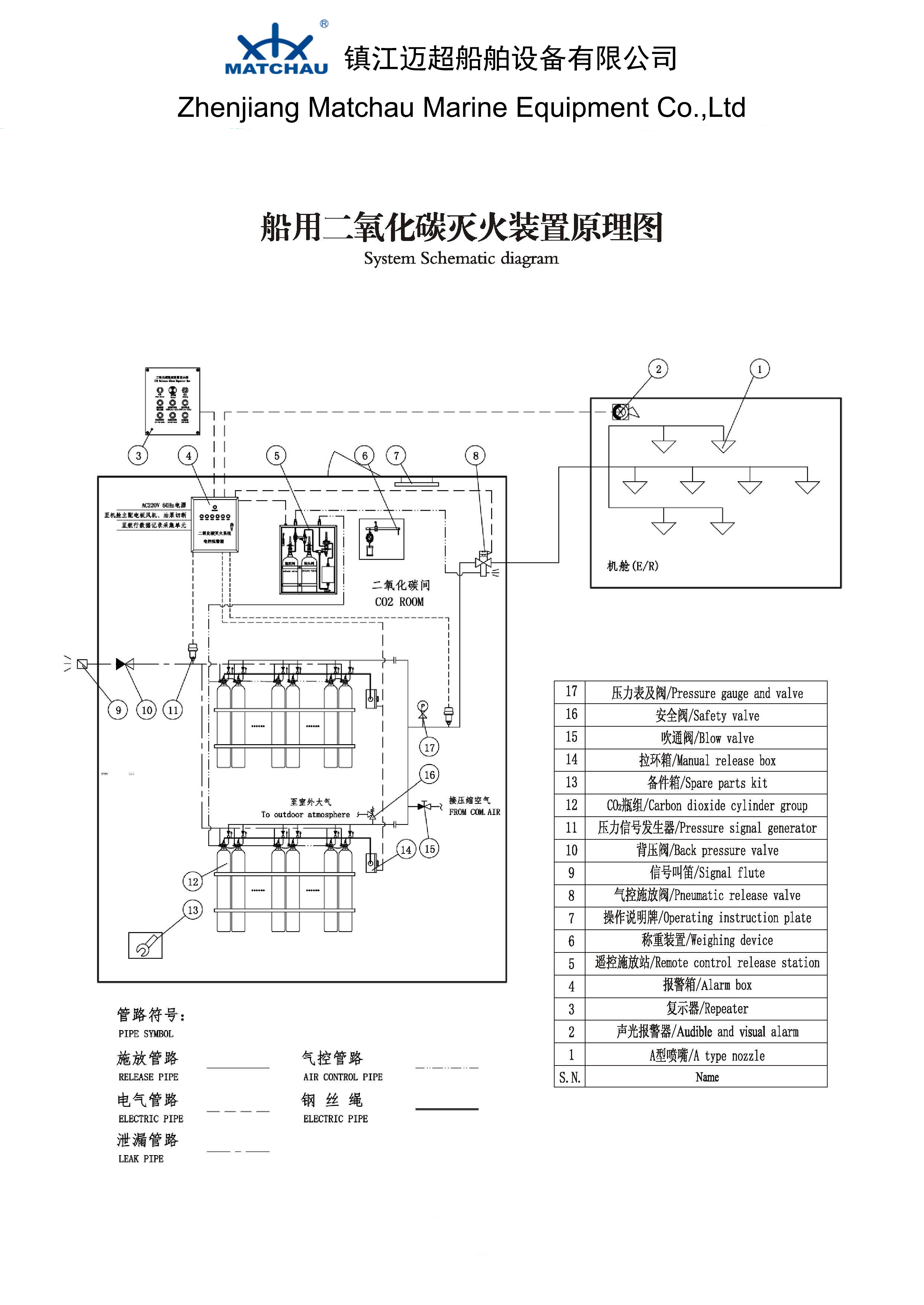

Schematic diagram

图纸1
