Marine Version Skid Mounted Dry Chemical Unit

Marine Version Skid Mounted Dry Chemical Unit is approved by class and sales well in the market.

Application of the product: liquefied petroleum gas, liquefied gas filling barge

Technical date:

Model specification: ZFPC-500(750/1000/1500/2000/2500/3000/3500/4000/4500/5000~1000)

Capacity of dry power(kg): 500/750/1000/1500/2000/2500/3000/3500/4000/4500/5000~1000

System service pressure(Mpa): 1.0~1.6

Pilot gas: N2

Discharge rate of dry powder applicator(kg/s): FQ3.5/3.5kg/s FQ5/5kg/s

Dry powder applicator range(m): ≥12

Dry powder monitor discharge rate(kg/s): 10/25/35/40/45/50kg/s

Dry powder monitor range(m): 18/30/38/40/45/50m

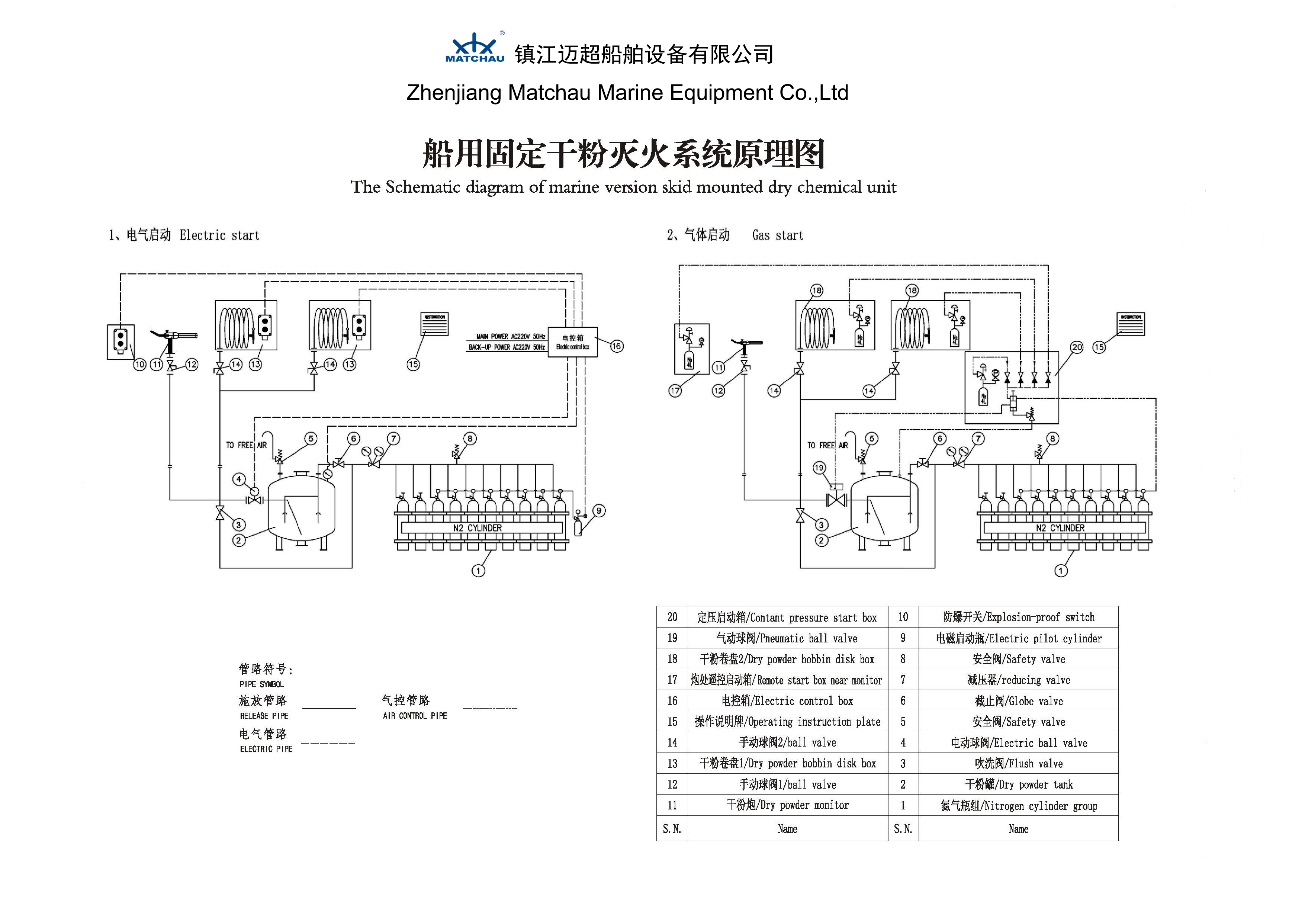

Schematic diagram
