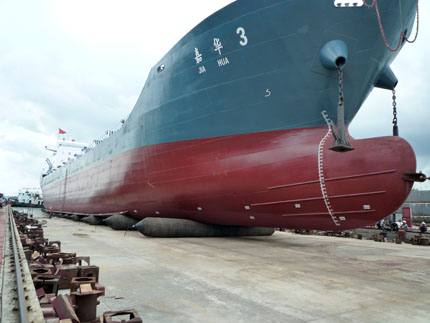

Ship launching, as the most popular usage of marine airbags, is the process of transferring a vessel to the water. Comparing with traditional launching methods like side-way launching, using marine airbags saves your time, investment, lands and needs much lower maintenance. Meanwhile, marine airbags can protect the hull of vessels from damages and they can be folded to store in the corner waiting for next mission.
Most of all, marine airbags can redirect the vessel regardless of land form just by means of adjusting inner air pressure of marine airbags to change the working height.
Specifications of Ship Launching And Landing Airbag:
Diameter | Effective Length | Layers | Working Pressure | Working Height | Loading Capacity TM (reference) |
1.0M | 5M-21M | 5 Layers-10 Layers | 0.05-0.15Mpa | 0.3m | 17 |
0.4m | 14 | ||||
0.5m | 12 | ||||
1.2M | 0.05-0.15Mpa | 0.3m | 21 | ||
0.4m | 19 | ||||
0.5m | 17 | ||||
1.5M | 0.05-0.15Mpa | 0.4m | 26 | ||
0.6m | 21 | ||||
0.8m | 17 | ||||
1.8M | 0.05-0.15Mpa | 0.5m | 31 | ||
0.7m | 26 | ||||
0.9m | 21 | ||||
2.0M | 0.05-0.15Mpa | 0.5m | 35 | ||
0.8m | 28 | ||||
1.0m | 24 | ||||
2.5M | 0.05-0.15Mpa | 0.5m | 40 | ||
0.9m | 32 | ||||
1.2m | 26 |
Other size of marine airbags can be made according to customer's requests.
