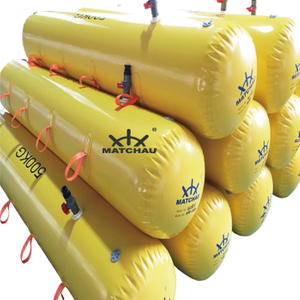

Capsule type air lift bag

Advantages:
(1)Optional lifting beam with multiple pick up point;
(2)Fabricated from high tenacity polyester cloth coated with PVC;
(3)Durable, versatile and easy to use;
(4)Folded company for easy efficient storage;
(5)Radio frequency welded seams for strength and integrity;
(6)Safe working load ratio of 5:1;
(7)Complete with air pressure keeping test when leaving our manufacturing facility;
(8)Suitable for shallow water usage;
(9)Suitable for long term use.
  • CLB

  • MATCHAU

Availability:
Quantity:

Models wtih data:

Model

Lifting Capacity

Dimension

(m)

Shackle Pick Up

Kgs

Diameter

Length

Kgs

CLB-100L

100

0.4

0.8

2

CLB-250L

250

0.6

1.1

2

CLB-500L

500

0.8

1.1

2

CLB-1T

1,000

1.0

1.6

3

CLB-2T

2,000

1.3

1.6

3

CLB-3T

3,000

1.5

2.0

3

CLB-5T

5,000

1.5

3.8

5

CLB-10T

10,000

2.1

3.6

6

CLB-20T

20,000

2.4

5.6

7

CLB-35T

35,000

2.6

6.5

8

Other capacity can be customized according to your requirements.
