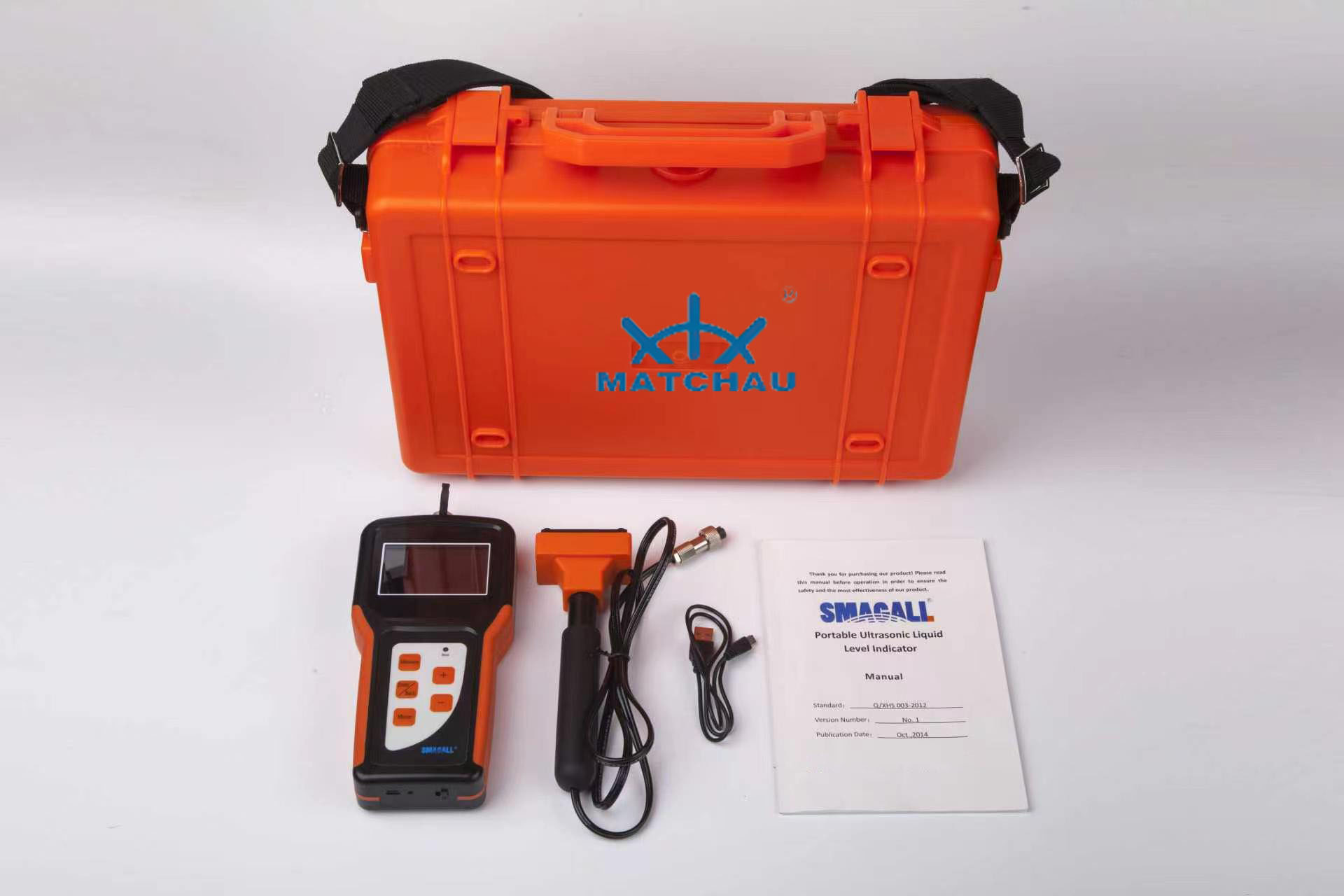

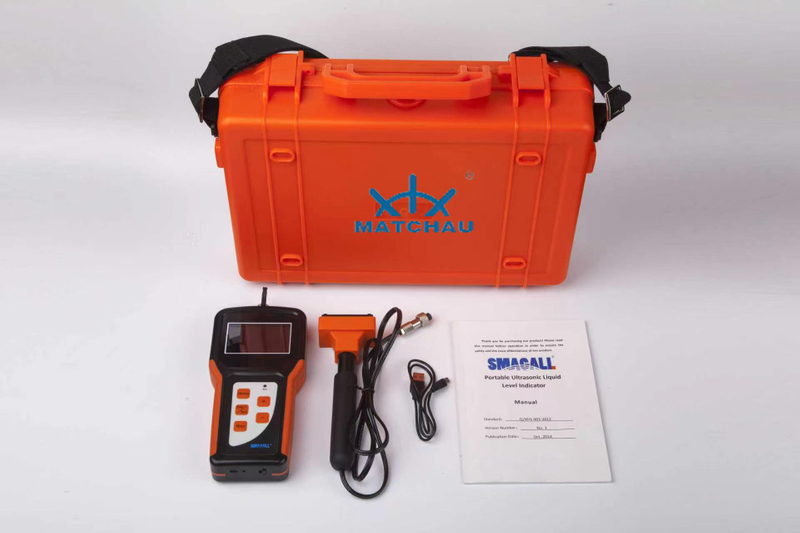

The portable liquid level indicator is designed to measure the presence or absence of liquid at a certain height position in a container or in pipelines. The material of measurable liquid containers can be made of various kinds of materials like metal, glass or unfoamed plastics.
Under ordinary conditions, the maximum wall thickness of measurable containers is 30mm. The product is applicable to the detection of various types of liquids (without crystallization or other particulate matter). Due to the technique of non-contact detection this liquid level indicator is an ideal choice for the detection of dangerous toxic or corrosive liquids.
Measurable medium
Pure liquid, milky liquid, suspension liquid.
Applicable Tank
CO2Tank with any of the following diameter ranges:
210mm - 230mm, 265mm- 285mm, 340mm - 360mm and 390mm-410mm
Common Tank:
All tanks outside the above tank diameter ranges can be considered as common type.
Vertical tank / horizontal tank / spherical tank(diameter<3M).
The indicator has no requirement towards medium, height and pressure.
Features
No contact with medium;
Suitable for toxic, corrosive, or invasive medium;
No need for drilling or welding on tank wall;
Advanced ultrasonic sensor technology;
Reliable measurement results;
Easy and convenient to operate and maintain;
Ultrasonic adaptive detection algorithm;
High-contrast OLED color display, suitable for outdoor use under strong light.
Main Specifications
Measurement accuracy | <5mm |
Measurable range of wall thickness | 3～30mm |
Measurable tank material | Steel, stainless steel, glass, unformed plastics |
Measurable medium | Pure liquid, milky liquid, suspension liquid |
Ambient temperature | -20℃～60℃ (-4°F~+140°F) |
Ambient humidity | 15%～85%RH |
Power supply | Two 18650 lithium batteries (supplied by customers) |
Current | 150mAh (on average) |
Operation Duration (fully charged) | > 8 hours |
